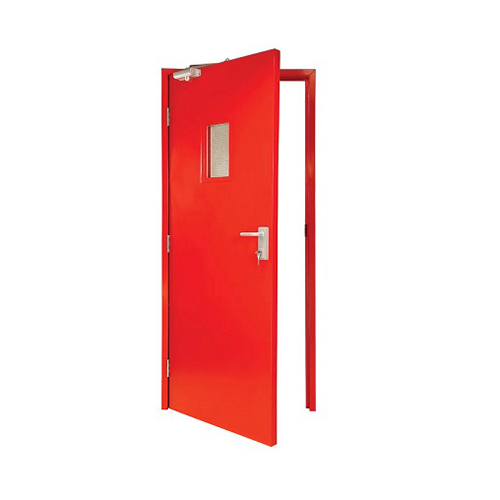

fire door

Name: fire door
Brand: Diagonals Technologies
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Square Meter

Get a Price/Quote

MOQ : 1 Square Meter

fire door Specification

Glass Type
Fire-rated glass vision panel (optional)

Usage & Applications
Fire safety, evacuation routes, compartmentalization

Width
Up to 1200 mm (customizable)

Capacity
Withstands fire up to 120 minutes

Surface Finish
Smooth or textured

Height
Up to 2400 mm (customizable)

Operating Temperature
Up to 1000C resistance during fire

Coating Type
Powder coated / epoxy coated

Weather Resistance
Yes

Finish Type
Powder coated or painted

Anti Corrosion
Yes, with anti-corrosive finish

Function
Fire protection and safe exit

Security Features
Multi-point locking, fire and smoke sealing strips

Operation Type
Manual (push/pull)

Thickness
45 mm, 50 mm, 55 mm, 60 mm, or customized

Standard
BS 476 part 22/IS 3614/UL/EN 1634-1 certified

Glass Thickness
6 mm - 19 mm (for vision panel)

Tensile Strength
High

Product Type
Fire Door

Material
Galvanized steel sheet with fire-rated core material

Size
Customized as per requirement

Weight
Approx. 45-70 kg (varies with size and specification)

Color
Red (Standard) or Custom

Application
Commercial, industrial, and residential buildings; fire exits; stairwells; and emergency exits

Window Type
With or without vision panel

Design Type
Plain or vision panel

Mounting Type
Single or double leaf, surface or flush mounting

Product Model
Fire Door Model FD-120

Locking Type
Mortise lock or panic bar

Installation Type
Wall-mounted or frame-fitted

Fire Rating
Up to 120 minutes (2 hours)

Sound Insulation
Up to 32 dB (with special construction)

Hardware Included
Hinges, handles, door closer, and locks supplied

Edge Construction
Reinforced with steel channels

Door Leaf Construction
Double skin steel with internal insulation

Frame Material
Galvanized steel or stainless steel

Core Material
Honeycomb, mineral wool, or ceramic core

Vision Panel Size
Available as per requirement (standard 230 x 900 mm)

Sealing System
Intumescent strips for smoke/fire sealing

About fire door

A fire door is a specially engineered door designed as a passive fire protection system to resist the spread of fire and smoke within a building for a specific duration, typically 30 to 120 minutes. It protects escape routes, saves lives, and minimizes structural damage by dividing buildings into compartments. [1, 2, 3, 4, 5]

Key Features and Functions:

Purpose: The primary purpose is to slow the spread of fire and smoke to allow for safe occupant evacuation and protect emergency exit routes.
Materials & Testing: Fire doors are constructed from materials like steel, wood, or glass and are rigorously tested to meet specific fire resistance ratings, such as T30 (30 minutes) or T90 (90 minutes).

Components: They include specialized hardware such as self-closing devices, intumescent seals (which expand to fill gaps when heated), and fire-rated hinges and locks.
Usage Locations: Common locations include staircases, corridors, hospitals, hotels, and high-risk environments like offices.
Operation: To be effective, they must remain closed or have a self-closing mechanism that ensures they close fully after being opened. [1, 2, 3, 4, 5]

Note: Fire doors are not just the door leaf itself; they are an assembly including the frame, seal, and hardware, often labelled to verify their certification. [1, 2, 3, 4, 5]

Fire Doors vs Regular Doors: Key Differences & Safety Benefits
Fire Doors vs Regular Doors: Why Fire Doors Are Essential for Safety. Fire Doors vs Regular Doors: Why Fire Doors Are Essential fo...

Vetrotech
What is a fire door? - CWS
A fire door is a special door designed to prevent the spread of smoke and fire in a building in the event of a fire. It therefore ...

www.cws.com
What is a Fire Door?
July 6, 2020. Fire Doors. A fire door prevents the spread of fire and reduces the passage of smoke- for a certain time period- bet...

Dimak Fire Doors

Show all

High-Performance Fire Safety

Model FD-120 fire doors provide up to 120 minutes of fire resistance, with advanced intumescent sealing strips to prevent smoke and flame spread. Its double skin steel construction and steel-reinforced edges deliver exceptional strength and reliability.

Comprehensive Hardware and Customization

Each fire door comes complete with high-quality hardware-hinges, handles, door closer, and locks. Sizes, finishes, vision panel options, and core materials can all be specified to match your project's requirements, ensuring both functional and aesthetic suitability.

Versatile Application and Robust Certification

Ideal for commercial, residential, or industrial buildings, these doors are certified to BS 476, IS 3614, UL, and EN 1634-1 standards. Their adaptability and rigorous testing make them perfect for fire exits, stairwells, and emergency routes in diverse environments.

FAQ's of fire door:

Q: How is the Fire Door Model FD-120 installed?

A: The FD-120 fire door can be wall-mounted or frame-fitted, depending on your site's requirements. Installation is typically conducted by professional installers to ensure compliance with fire safety standards and optimal performance.

Q: What core materials are available for this fire door, and how do I choose?

A: You can select from honeycomb, mineral wool, or ceramic core materials. Selection depends on your fire rating and insulation needs, with mineral wool and ceramic offering higher fire resistance and sound insulation.

Q: When should I choose a vision panel for my fire door?

A: A vision panel is recommended when visibility between spaces is required for safety or operational efficiency. Standard panels measure 230 x 900 mm, but custom sizes are also available based on your preferences.

Q: Where can Fire Door Model FD-120 be used?

A: This model is suitable for commercial, industrial, and residential buildings. Common applications include fire exits, stairwells, emergency exits, and evacuation routes where fire protection and safe compartmentalization are necessary.

Q: What is the process for requesting customized sizes and finishes?

A: To request customization, provide your specific size, thickness, vision panel requirements, and preferred finishes (powder coated, painted, color). The manufacturer will work with you to ensure the door meets your project and compliance needs.

Q: How does this fire door contribute to building safety?

A: FD-120 doors are equipped with fire-resistant cores and intumescent sealing, capable of containing fire and smoke for up to 120 minutes. This containment is critical for safe evacuation and reducing spread of fire throughout a building.

Q: What are the benefits of the included hardware and security features?

A: Supplied hardware-including mortise locks or panic bars, multi-point locking, and fire/smoke sealing strips-provides not only enhanced security but also ensures the door's effectiveness during emergencies, facilitating easy operation and safe exit.
